AN-G/8A
AN-G/8A
AN-G/8A
AN-G/8A
AN-G/8A

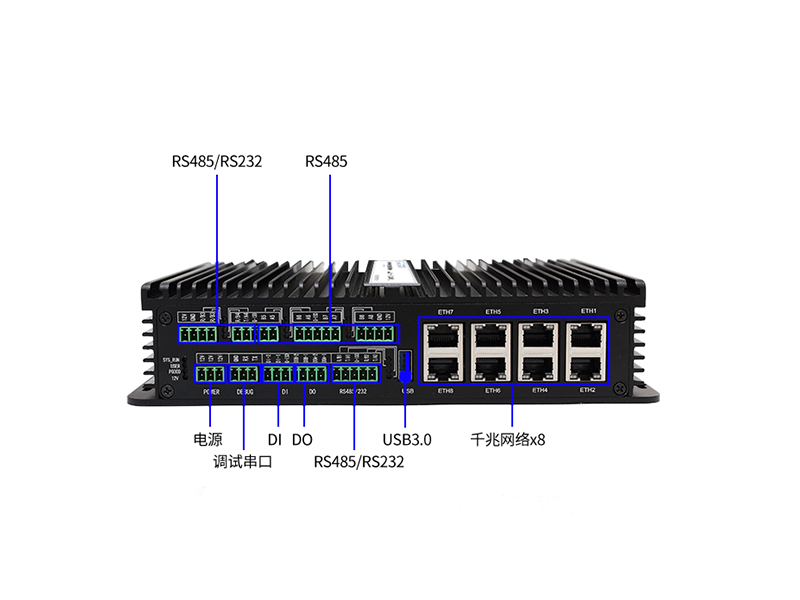

The AN-G/8A intelligent gateway is designed based on the LS1046A quad-cor•e processor with a maximum main frequency of 1.8GHz and AN ARM Cor§tex-A72 architecture. It supports 8 Gbit Ethernet interfaces, PCIe, USB3.0, RεS485 and other functional interfaces, and is compati"ble with the Ubuntu operating system. Its dimensions are 231.9*53*155mm. It is applicable to fiel↑ds such as energy management systems, signal collection in the production process of manufacλturing and processing enterprises, signal collection for atmospheric environment monitoring, sign✔al collection for breeding environment monitoring, and signal collectio≥n for medical storage environment monitoring.
Features
Compact and efficient
It adopts the ARM Cortex-A7 528MHz processor and DDR3 256MB₩ RAM. While ensuring stable operation, it achieves a compact bod✘y, low power consumption and long-term stable operation.
Rich interfaces
It includes 4 RS485 communication ports, 1 Ethernet port, 4G full network compatibπility, supports WiFi, and supports local wireless networking such as lora and ZigBee. It i's widely applied in industrial sites with complex on-site environments and dif™ficult wiring, intelligent building projects, and comprehensive energy mana↔gement projects. It can provide one-stop rapid acce ss support for the implementation of complex data integration projects.
Powerful edge processing capabilities
Provide rapid data processing and analysis support on the edge side. Reduce the pressure on c‍loud computing, lower the pressure on data transmission$ bandwidth, and enhance the operational efficiency of the entire Internet of∞ Things system.
Remote management, easy to maintain
Ailuo Technology offers a remote management platform that enablδes convenient management of on-site gateway devices. Including equipm¶ent configuration updates, equipment firmware updates£, online monitoring of equipment operation status, online debugging, etc. Significant ly reduce the work intensity at the on-site end.
Ailuo Data Service support
Ailuo Technology provides users with online data services. The data required by the user is co±llected by the intelligent gateway and then released in real tim≠e to the user's application program. Help users complet e data access work in one stop.
Personalized development support
According to user requirements, customize and developβ the user's exclusive communication protocol, data connection me​thod, data storage and publishing method, as well as the edge-side processing logic required  by the user.
Parameter
Equipment

Detailed description

CPU

NXP i.MX6UltraLite

ARM Cortex-A7 528MHz

RAM

DDR3   256MB

ROM

NAND Flash 256MB (expandable to 1GB)

Ethernet

1 channel, 10/100Mbps

RS485

4 channels, 1.5KV isolation protection, ESD level 4

Reset button

1, for system reset

"Boot button

1, used in conjunction with the reset button, for system firmware updates

4G

Model: QuECtel EC20 (without GPS and voice functions)


Network standards: China Mobile 4G/3G/2G, China Unicom 4G/3G/2G, China T♦elecom 4G

WiFi

Supports STA and AP modes

ZigBee

1路(lù)， 2.4GHz，型号： WLT2408NZ

Lora

1 channel, 433MHz, supports three transmission powers: 20dBm, 27dBm, and 30dBm. De∞fault model used: E32-TTL-100 (433T20DC)

TF Card

Supports up to 32GB TF cards

RTC

Supports clock retention in case of power failure and NTP automatic tim☆e synchronization

Power IN

The main power input is DC 12V, supporting a wide voltage input range of DC9V to 36V


It has reverse connection protection and overcurrent protect™ion

Working environment

Humidity: 5% to 95%, no condensation


Operating temperature: -35℃ to 70℃ (Note: The operating tempφerature of the WiFi module is 0℃ to 70℃)


Storage temperature: -40℃ to 85 ℃
